Floating Hyperbolic Mixer
The Floating Hyperbolic Mixer is equipment developed for homogenizing and mixing wastewater and sludge in general. Due to its format, the floating hyperbolic mixer can be installed in rectangular tanks, square tanks, anaerobic ponds, facultative ponds, polishing ponds, aeration systems, anoxic selectors and more. Homogenization of the wastewater is achieved by mixing through recirculation and directing the liquid flow from the surface to the bottom of the tank, providing complete homogenization.
Features and operation
Technical details

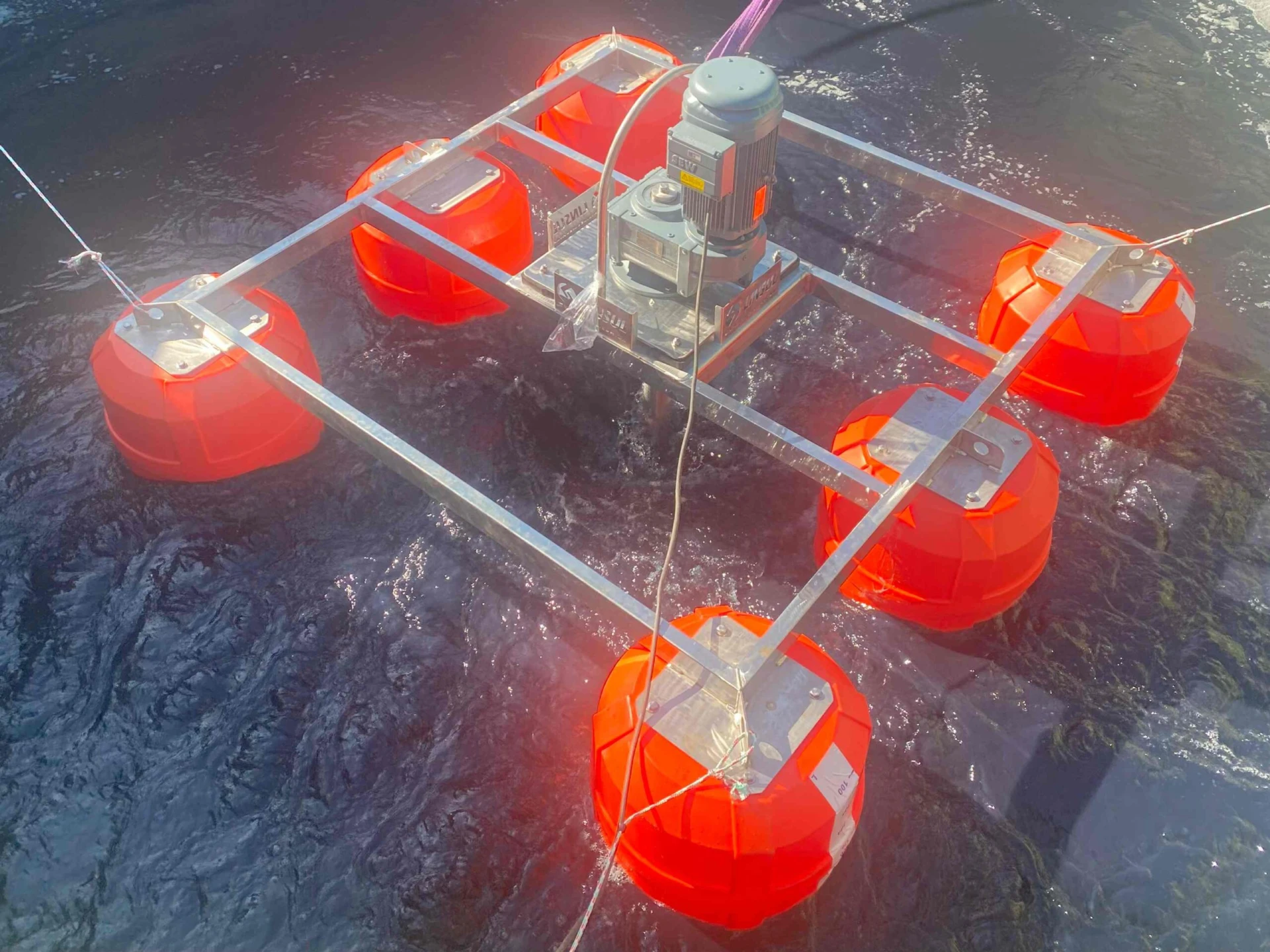

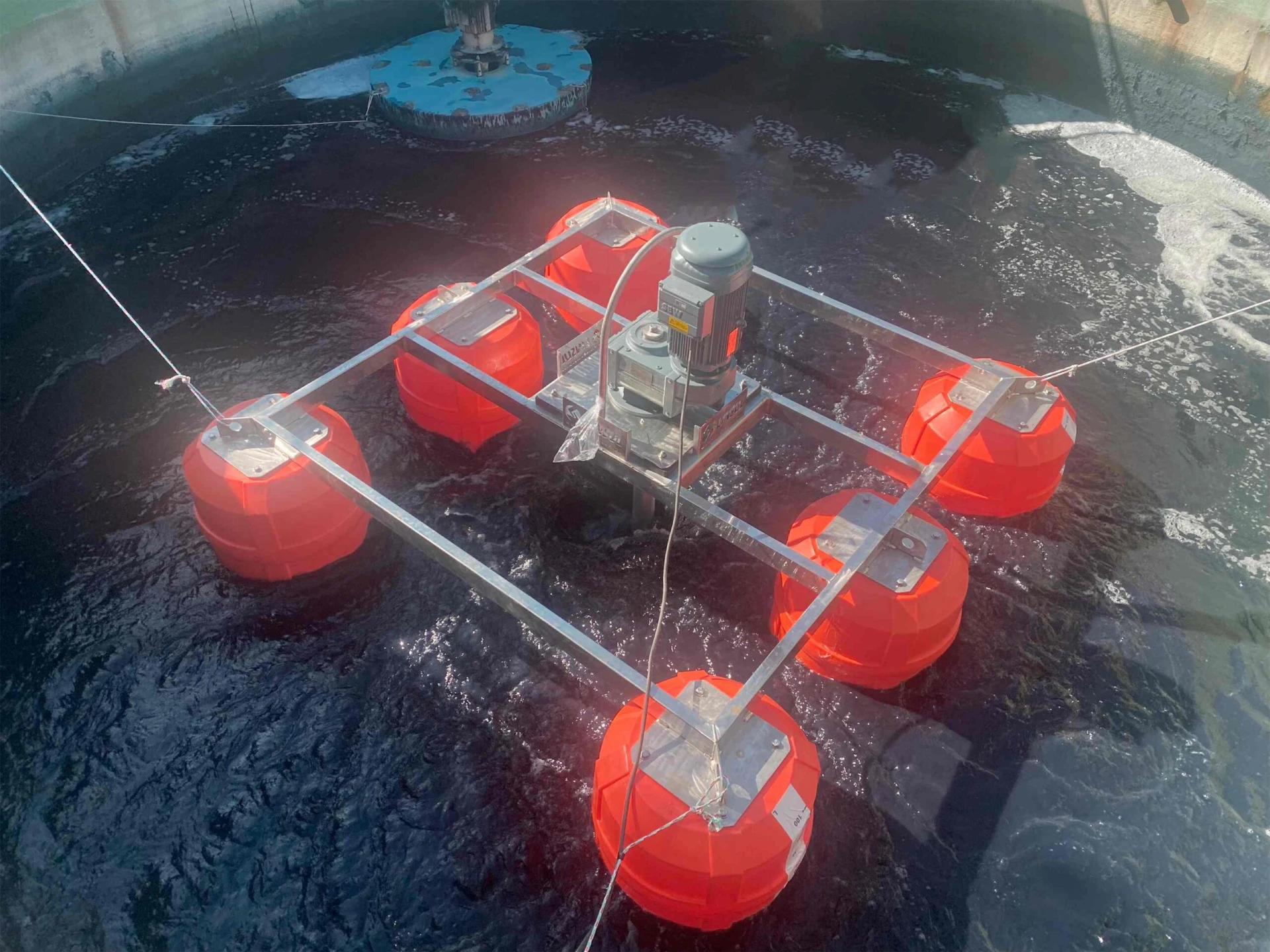

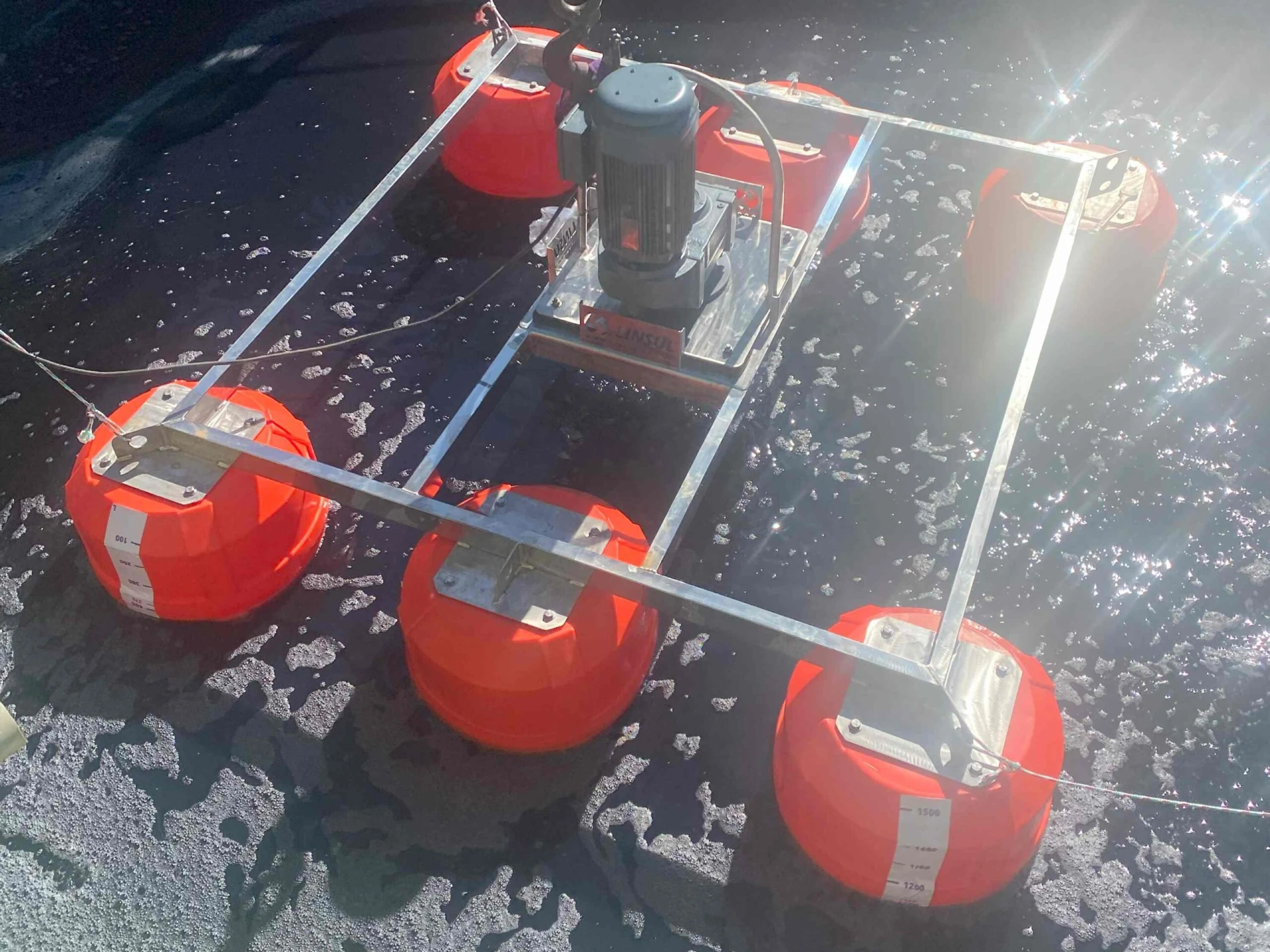

Its main advantage is the ease of installation in existing wastewater treatment tanks and lagoons: thanks to its compact design, it basically only needs to be positioned inside the tank or lagoon. Since the floating hyperbolic mixer is mounted on a set of floats and secured with steel cables to the sides of the tanks or lagoons, it can easily be moved to achieve complete mixing according to the customer's needs. Among the many advantages of the floating hyperbolic mixer, it is suitable for lagoons lined with geomembrane: because the mixer assembly floats, it has no contact with the lagoon bottom, so the lining is not damaged.
Due to the shape of its turbine, the floating hyperbolic mixer achieves greater efficiency when mixing wastewater or sludge, with the lowest electrical energy consumption as a criterion. The turbines of the floating hyperbolic mixer have a conical shape with several blades whose curvature was designed and tested to provide the best mixing of the wastewater with the lowest installed electrical power. Because the turbine has a large contact area, it can operate at low speed, driven by a SEW gear motor, a market reference for robustness and durability.

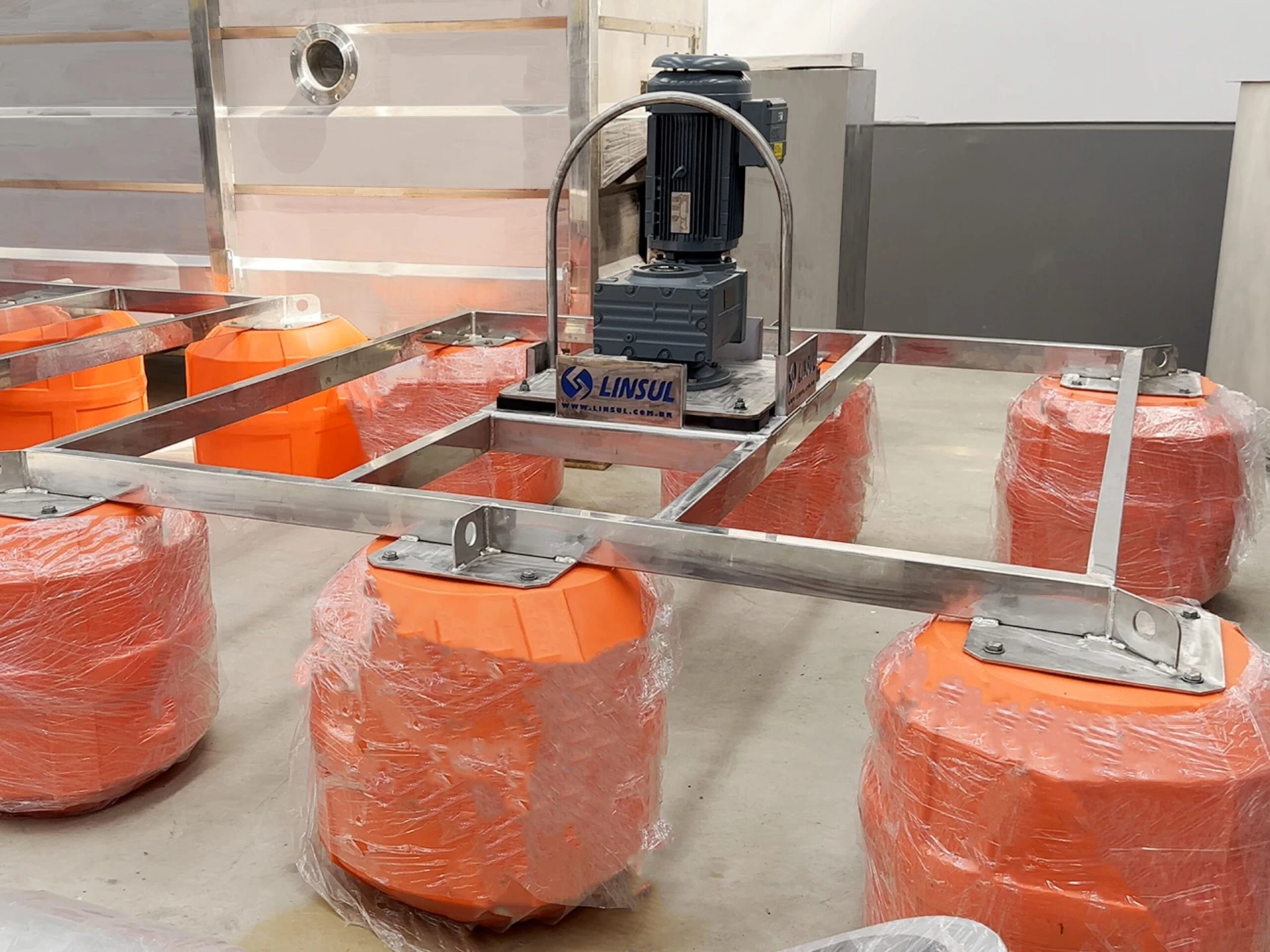

In short, the floating mixer is built with a raft made of stainless steel profiles, a protection system for the mixing turbine, a central shaft reinforced with schedule-40 AISI 304 tube, a vibration damping system for the mixer assembly, a raft anchoring system and a lifting system.
Available capacity: 1.0 to 25 HP.
Contact us through the website: https://linsul.com.br/contato/
Visit our YouTube channel: https://youtu.be/Q9X_XGReB9M?si=N36CD9K1dHWdG6qp
Discover the advantages of the Floating Hyperbolic Mixer.
We offer complete solutions for every stage of water treatment, developed to provide reliability, high performance and technical excellence in different applications.
Advantages
- The floating Hyperbolic mixer can be installed in tanks or ponds of any shape to homogenize wastewater or sludge;
- Easy installation, since the mixer basically only needs to be positioned inside the tank or pond;
- Wastewater mixing turbine manufactured in 100% stainless steel;
- Low electricity consumption;
- Low maintenance;
- Among other advantages.
Applications
- Floating mixer for wastewater in circular equalization tanks;
- Floating mixer for wastewater in square or rectangular tanks;
- Homogenization of anoxic selectors;
- Homogenization of raw wastewater in general;
- Homogenization of wastewater to keep solids in suspension
- Floating mixer for anaerobic, facultative and polishing ponds;
- Other applications upon request.
Contact us through the website: https://linsul.com.br/contato/
Visit our YouTube channel: https://www.youtube.com/@linsulindustria
Request a Technical analysis.
Request a technical analysis for
your operation today!
Floating Hyperbolic Mixer
