MBBR System
The MBBR System is widely used in wastewater treatment plants due to its highly efficient technology combined with a smaller installed footprint. The MBBR media combine suspended biomass with attached biomass, forming a biological biofilm with a high concentration of bacteria to degrade the organic load of the wastewater.
The great advantage of the MBBR system is the smaller installed area, requiring 2 to 3 times less space than conventional systems.
Features and operation
Technical details

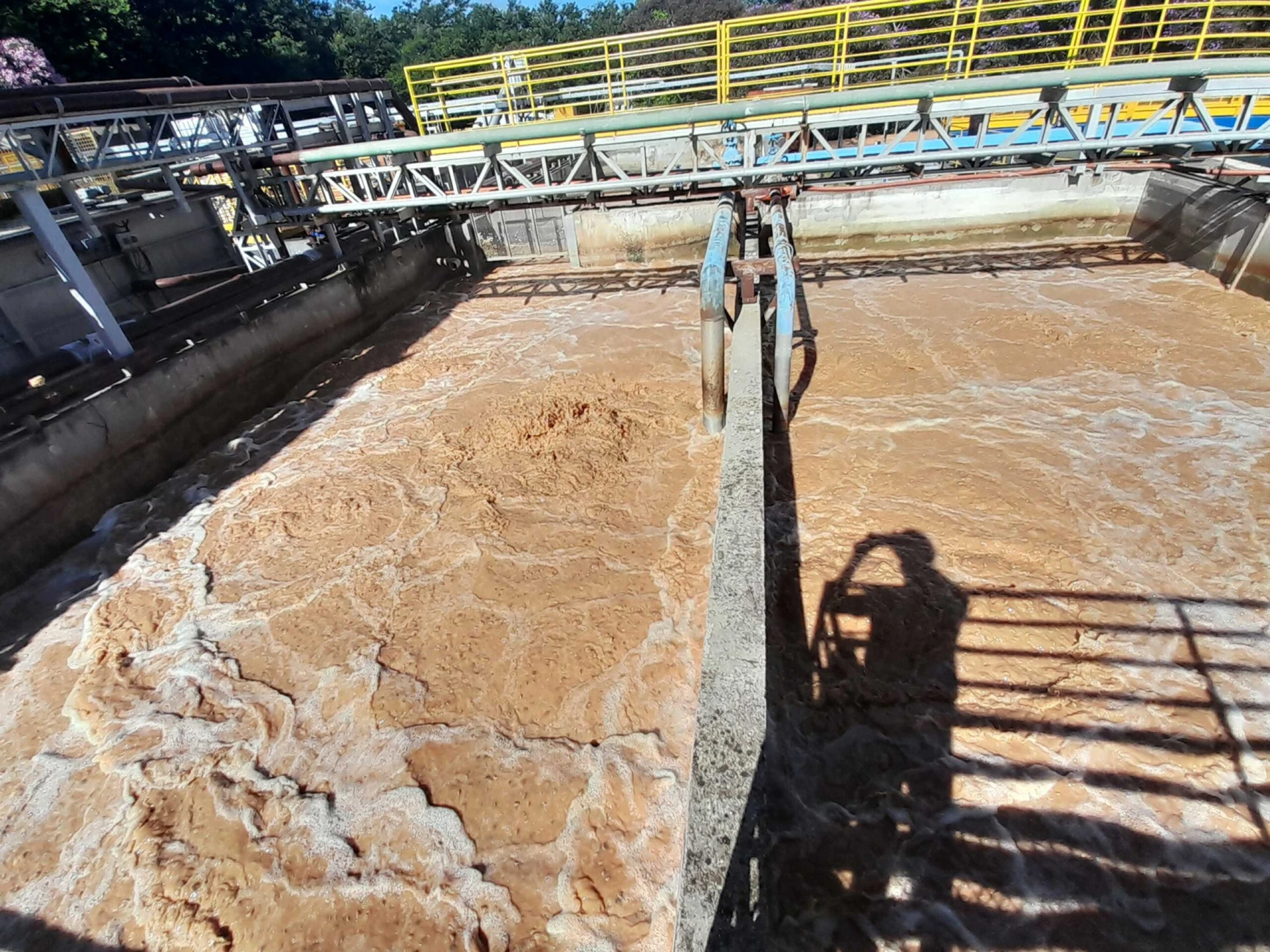

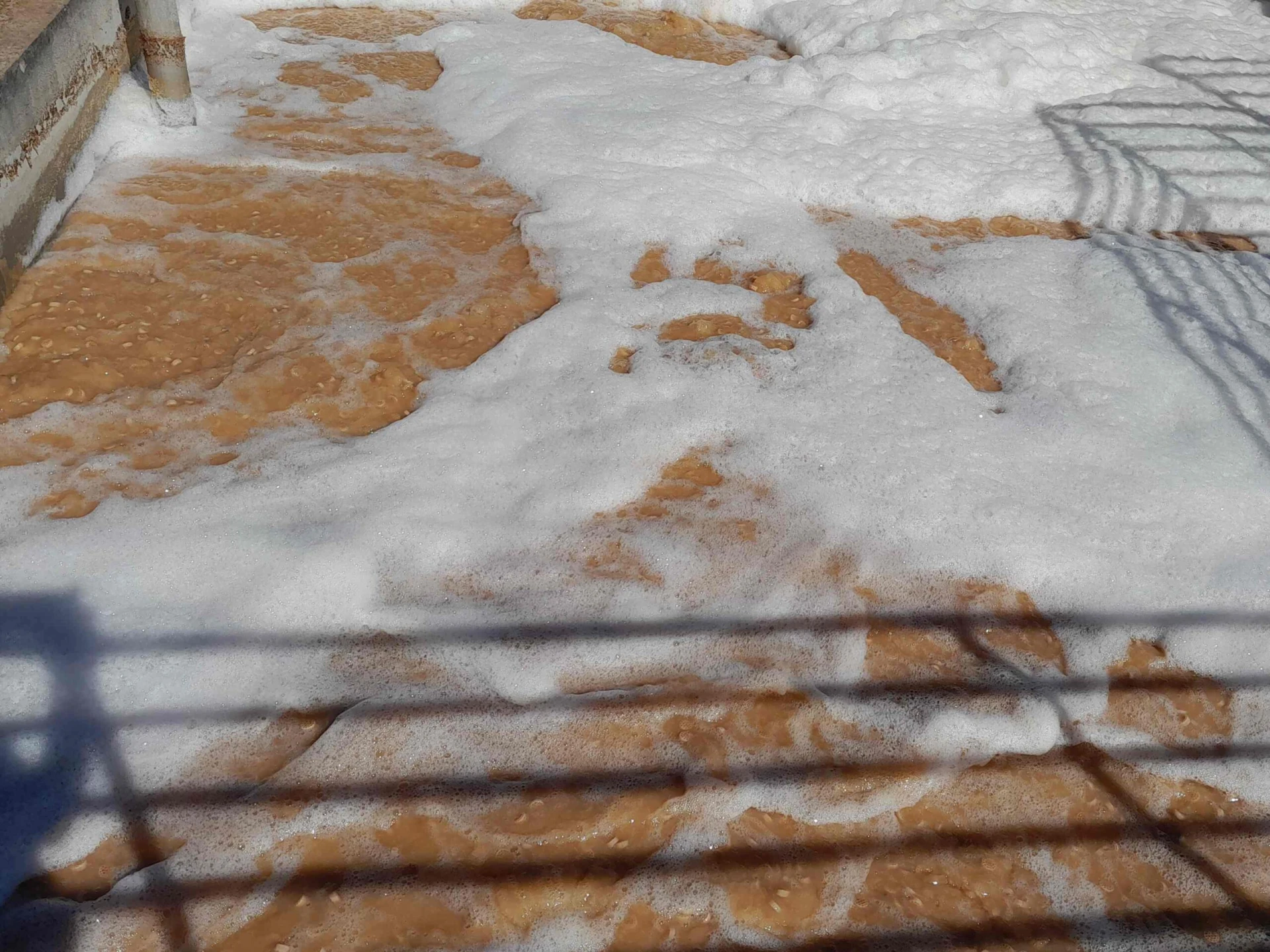

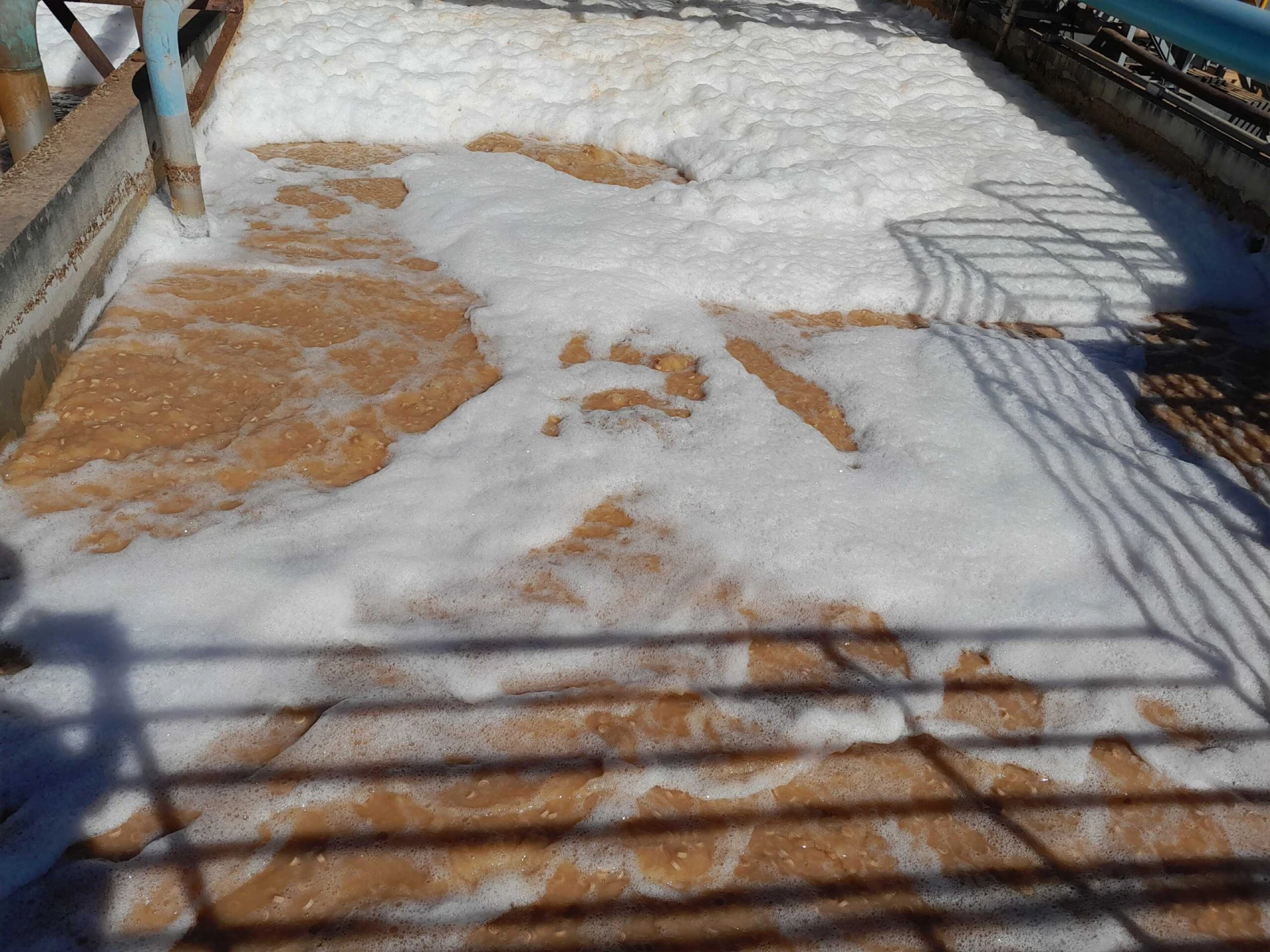

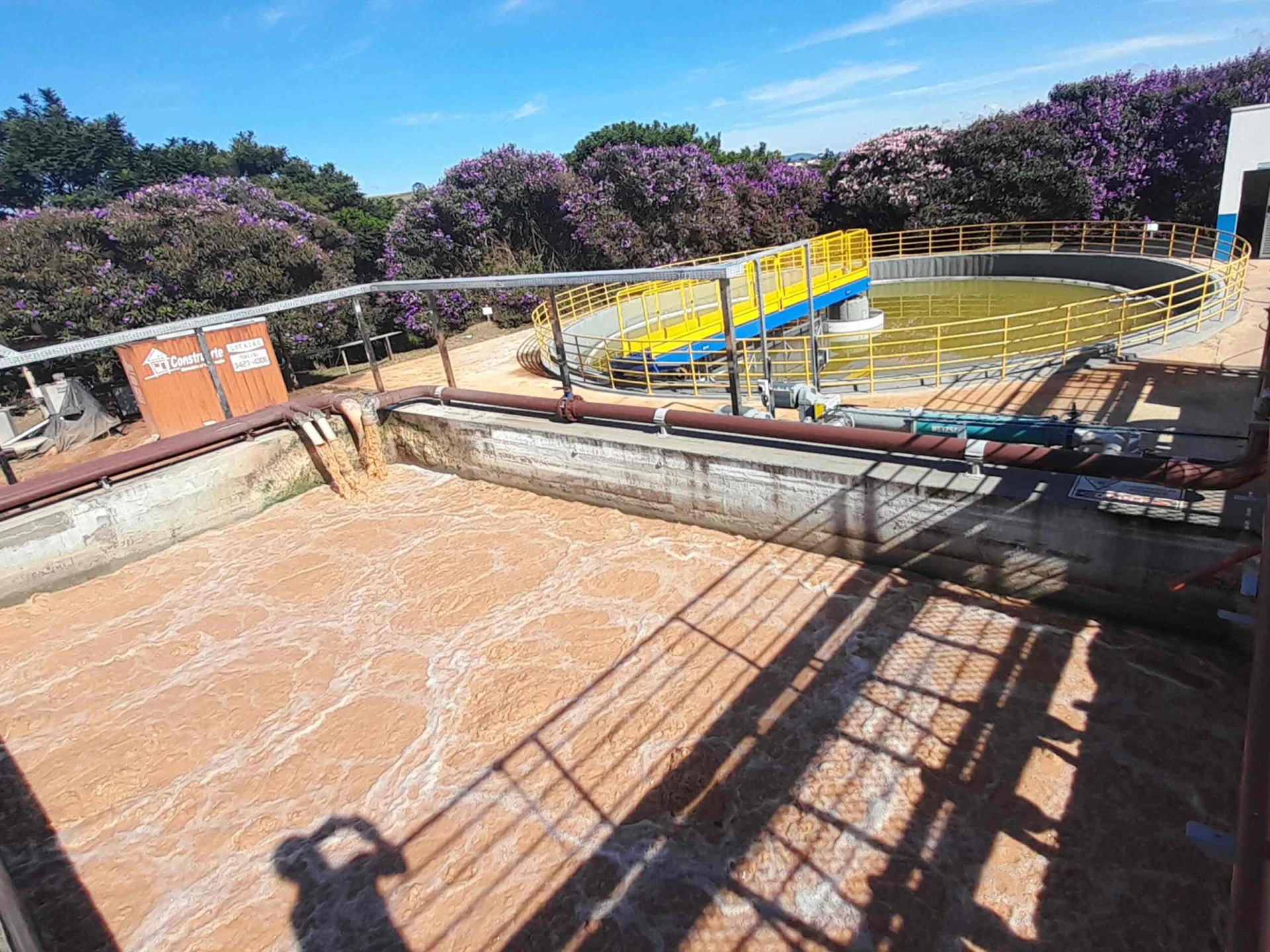

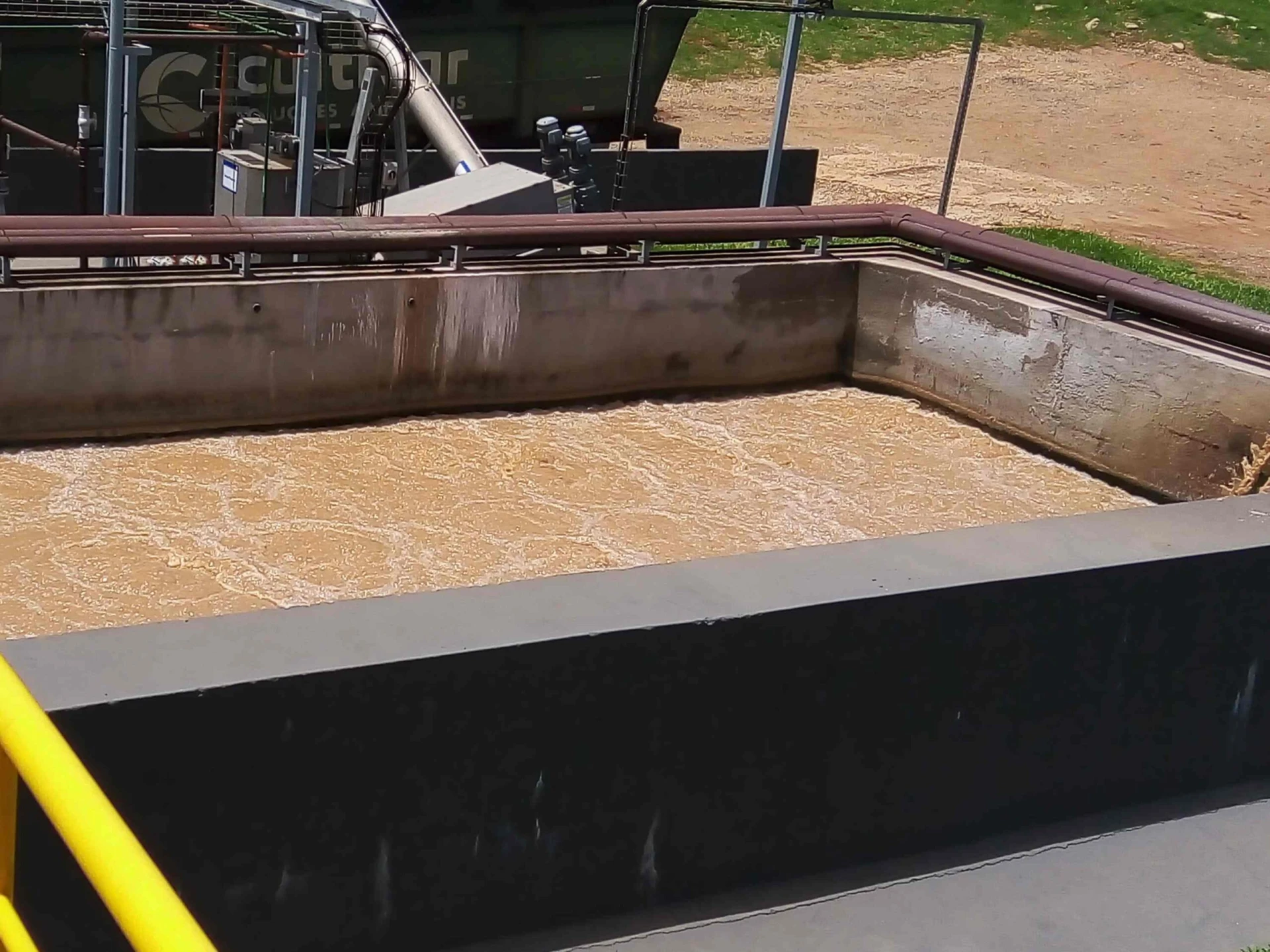

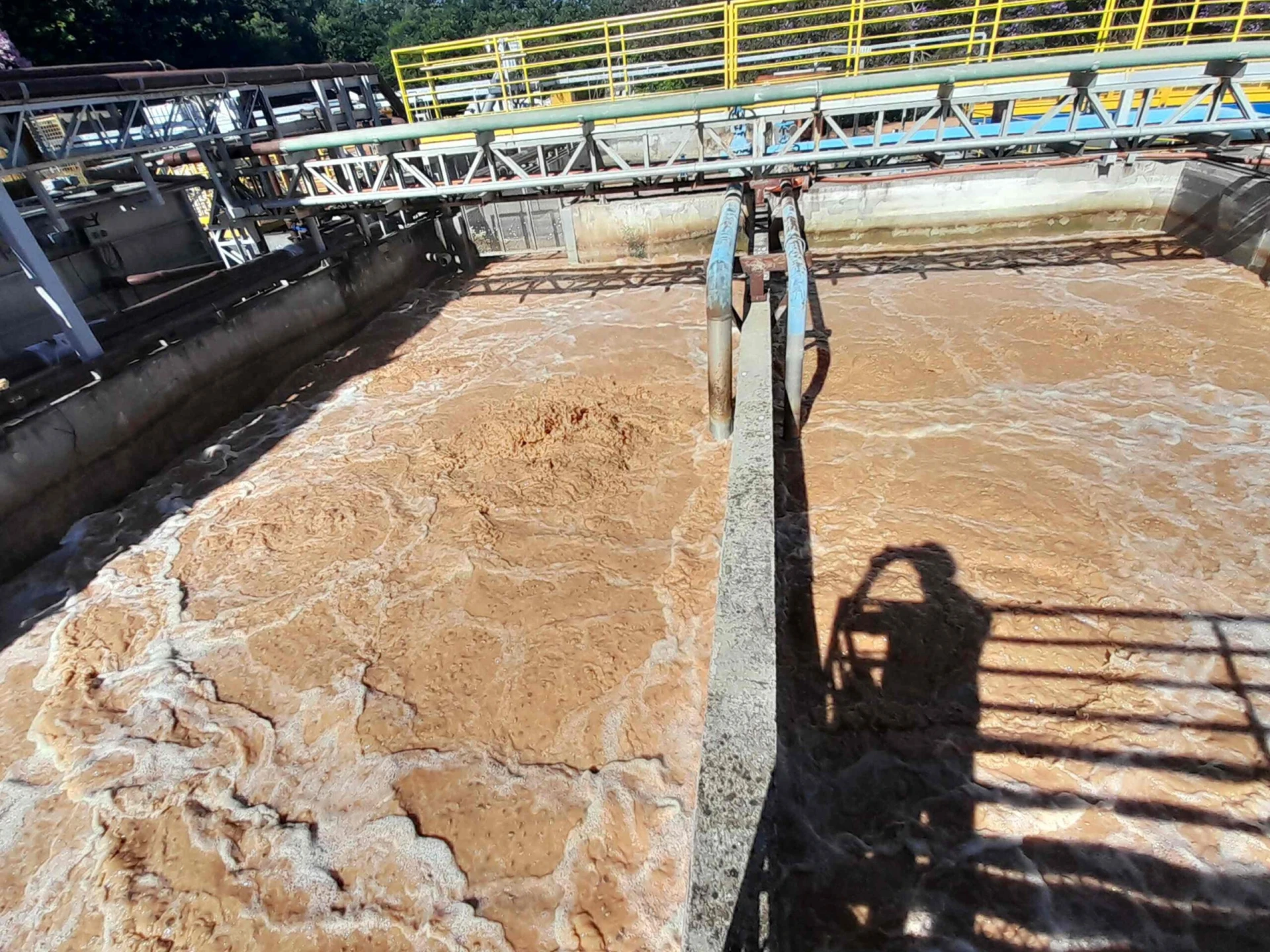

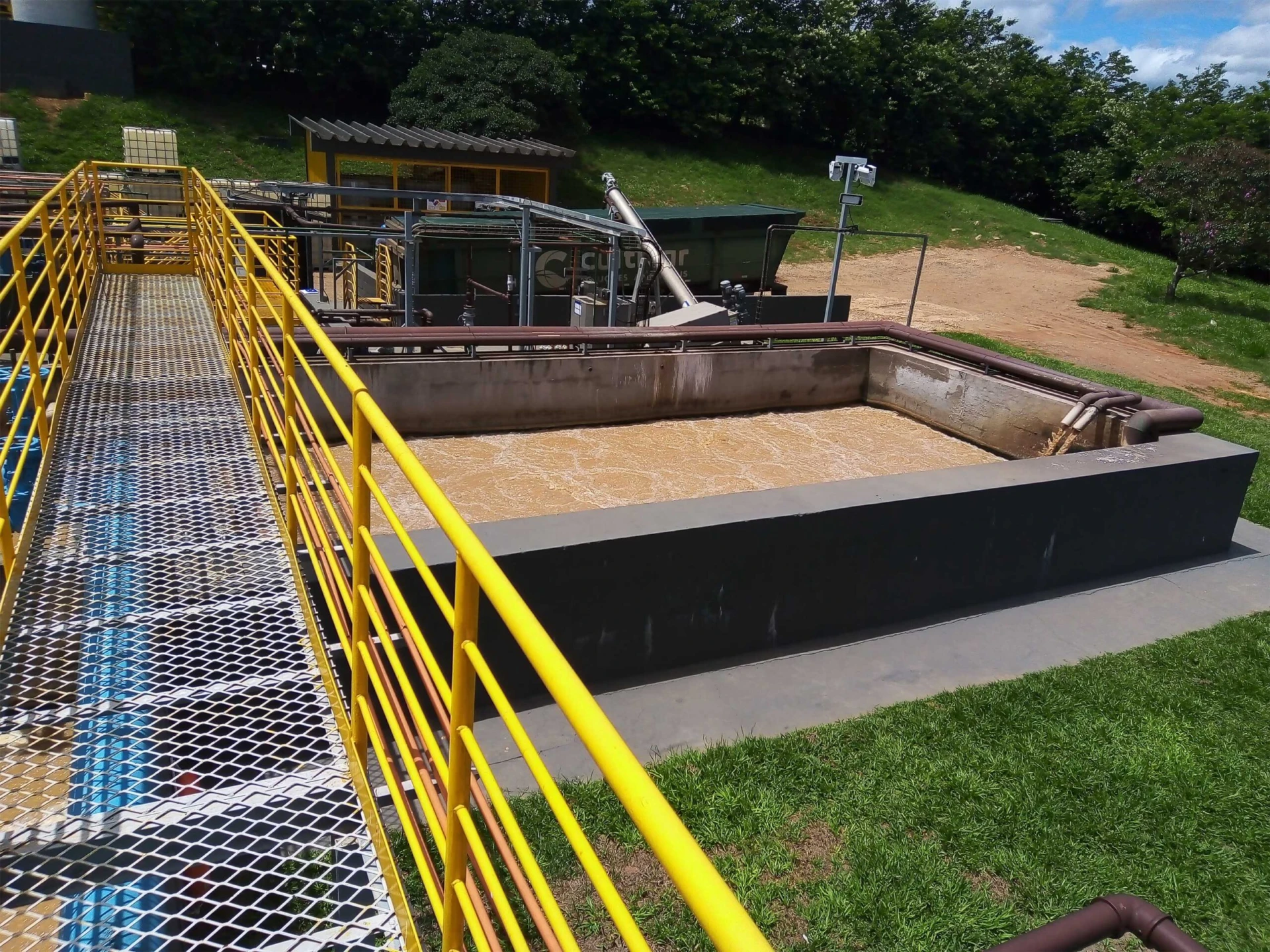

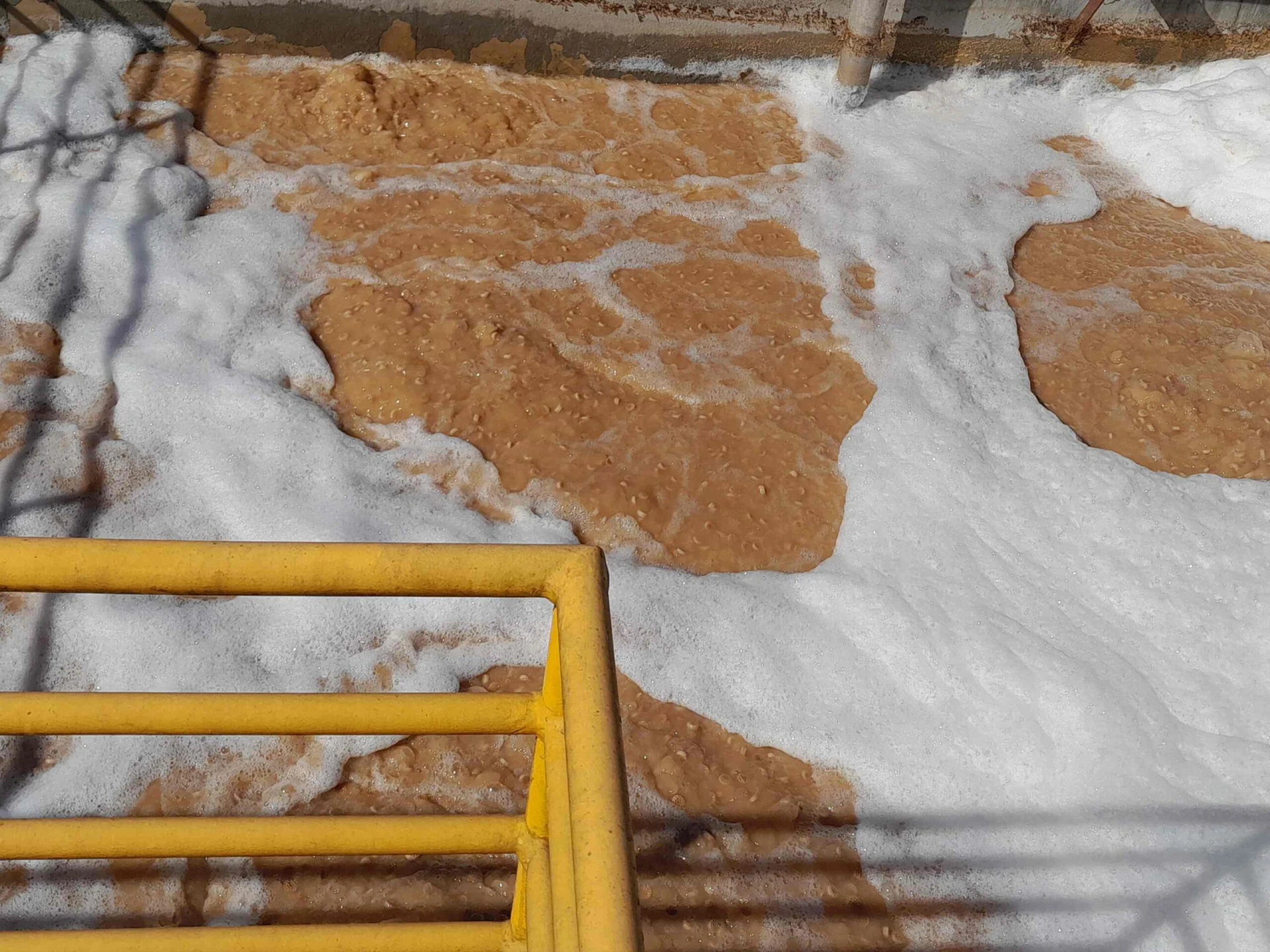

Aeration systems using MBBR media are recommended with tank fill ratios of 30% to 60%, depending on the type of wastewater and the air distribution design. For the system to work, the MBBR media must be kept in suspension; being a low-density plastic material, it is easily suspended by the agitation and mixing caused by air injection into the aeration tank. During mixing, the suspended liquid biomass comes into contact with the media biofilm, increasing contact time and cell retention and generating greater capacity to degrade carbonaceous and nitrogenous organic matter, resulting in an excellent reduction of BOD and COD.

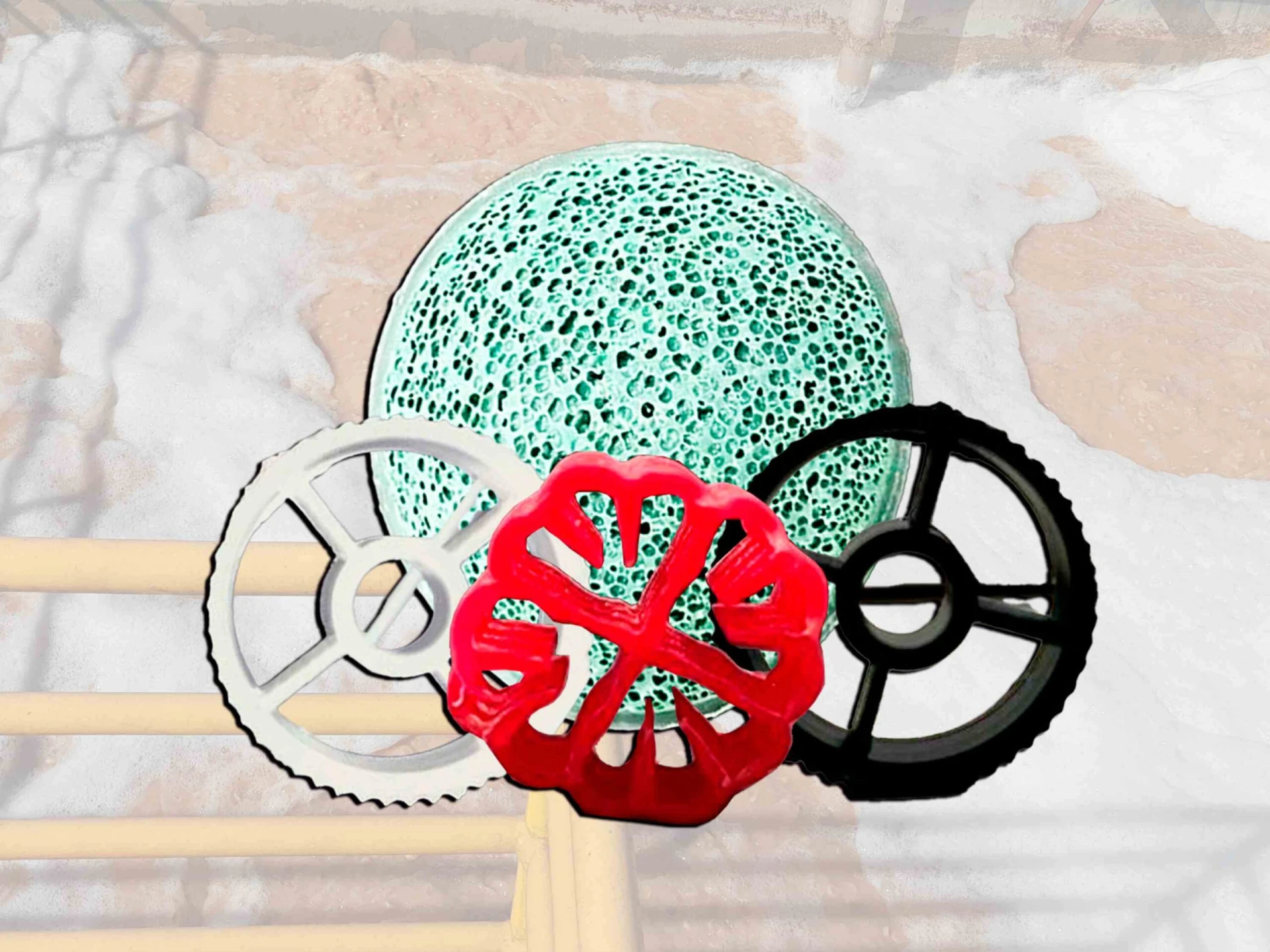

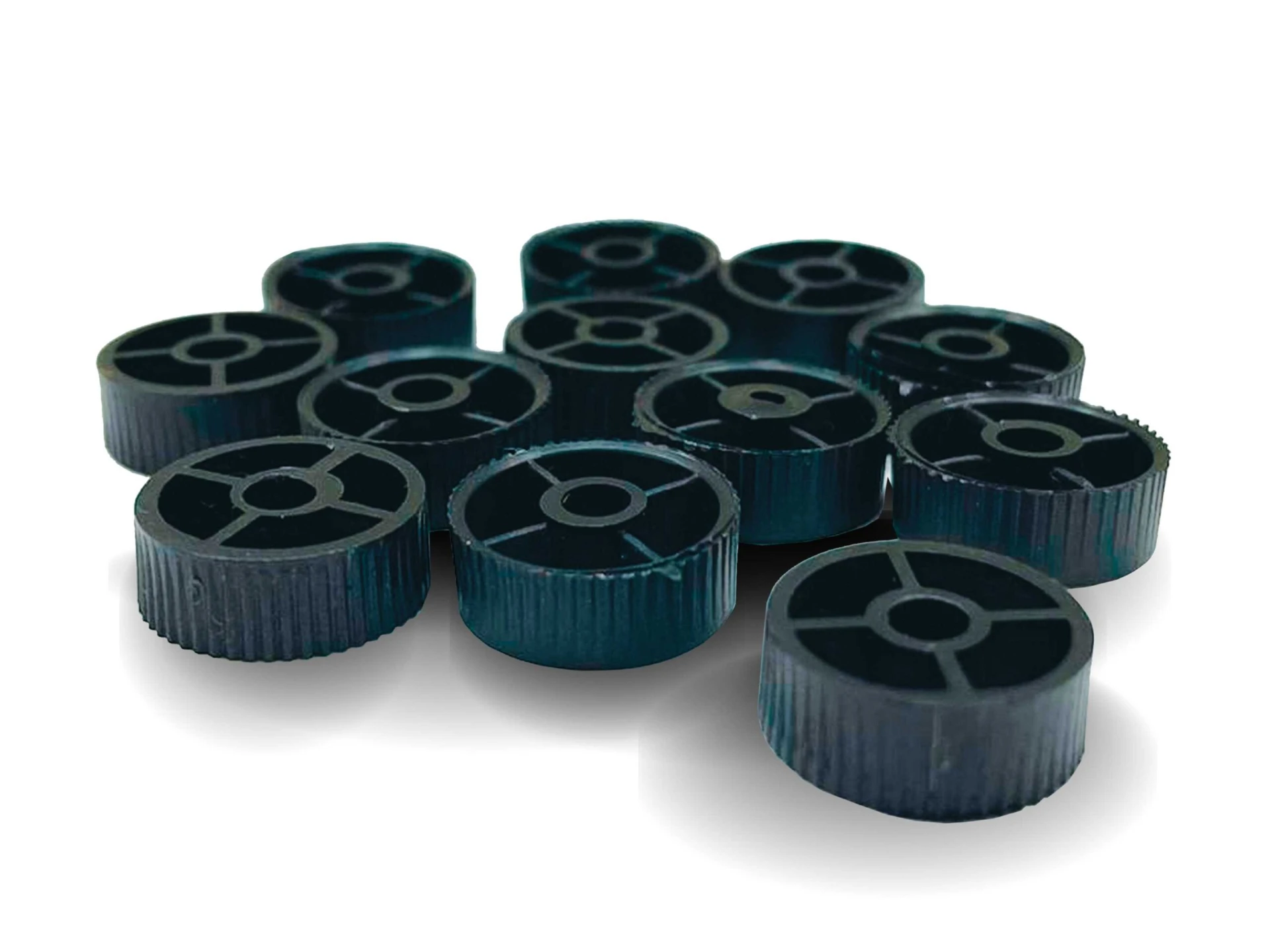

To design the MBBR system, we have a wide variety of media available, with different densities, shapes, contact areas and more, to meet the specific needs of each project. In general, the MBBR media most used in projects have a contact area of 500 to 650 m²/m³, for the best cost-benefit.
The aeration used in MBBR systems is generally coarse bubble diffuser aeration, but to meet the demands of some projects, we can also apply fine bubble diffusers.
Available capacity: 5 to 1,000 m³/h.
Discover the advantages of the MBBR System.
We offer complete solutions for every stage of water treatment, developed to provide reliability, high performance and technical excellence in different applications.
Advantages
- Compact wastewater treatment;
- Highly efficient wastewater treatment;
- Among others.
Applications
- Coarse bubble diffused air aeration system;
- Treatment of wastewater with a high organic load;
- Industrial wastewater treatment;
- Sanitary sewage treatment;
- Among others.
Request a Technical analysis.
Request a technical analysis for
your operation today!
MBBR System
Why choose Linsul?
Here are some reasons:
Environmental Compliance and Legal Certainty
Our wastewater treatment systems give clients greater peace of mind, as their industries comply with strict environmental standards, avoiding fines and penalties.
Energy Efficiency and Cost Reduction
Our equipment is designed to minimize energy consumption, providing significant operational savings combined with effective, long-lasting results.
Let's talk about your project.
Count on a trained, specialized team to understand the characteristics of your operation and recommend the most suitable solution for your wastewater treatment, ensuring efficiency, safety and the best results for your process.
Talk to a specialist
