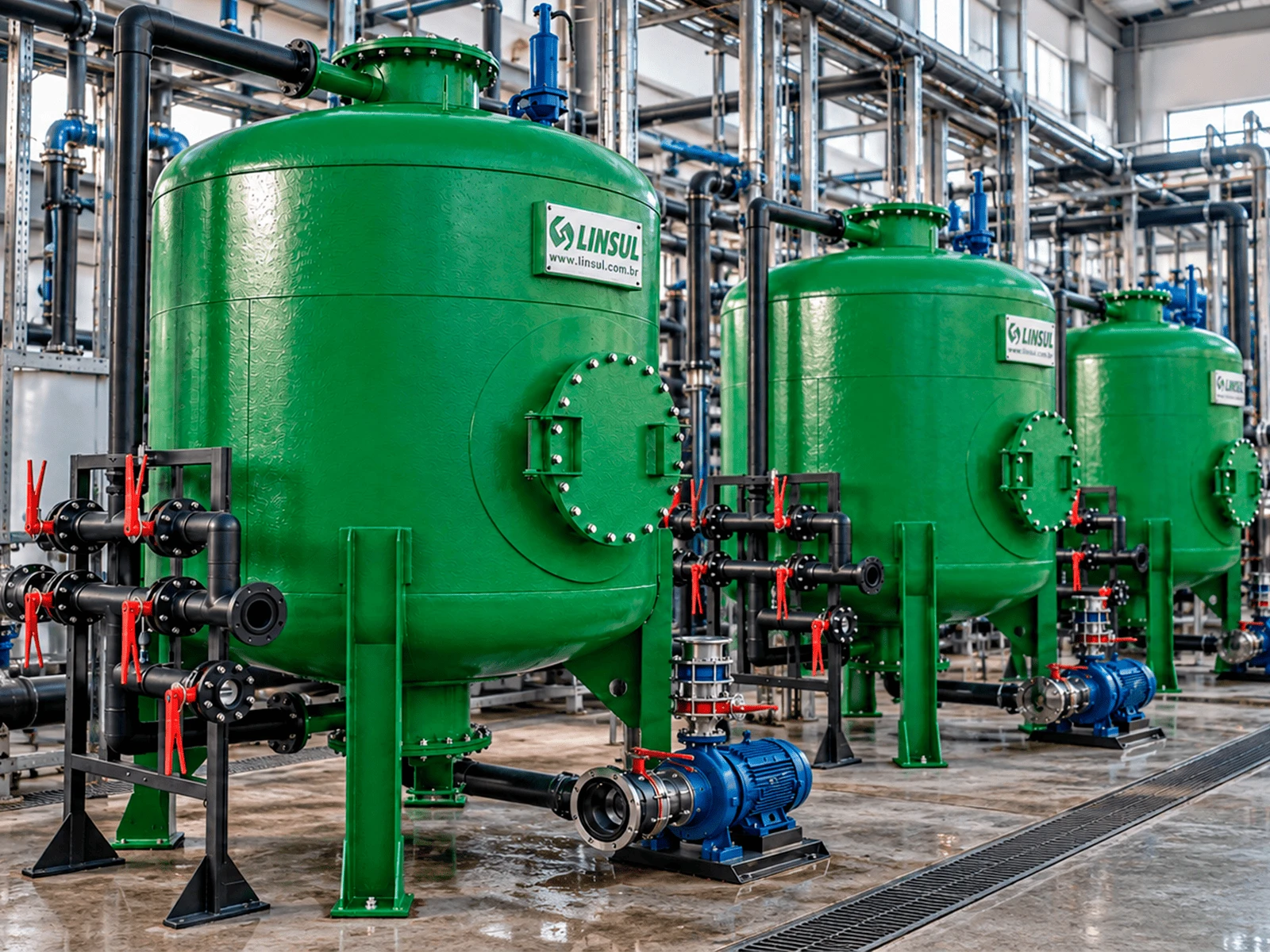

Pressure Filter
How the Pressure Filter works
The Pressure Filter works by forcing water, under pressure, through one or more layers of filter media selected according to the contaminants that need to be removed and the desired water quality.
As the water passes through the filter bed, the particles and impurities it contains are retained or reduced by different filtration and adsorption mechanisms, depending on the media used.
The possibility of combining different filter media makes it possible to configure the system for many industrial needs, from the removal of solids and turbidity to polishing stages and improving the characteristics of the water before subsequent processes.
This flexibility makes the Pressure Filter a solution that applies both to industrial water treatment and to reuse and final polishing systems.
Manufacturing process
LINSUL Pressure Filters are designed and manufactured considering the specific conditions of each industrial application.
Sizing takes into account factors such as flow rate, feed water characteristics, solids load, contaminants present, treatment goal and the quality standard required at the outlet.
Depending on the process conditions and construction requirements, the equipment can be manufactured in:
Carbon steel with special coating
A robust solution for different industrial applications, with surface protection suited to the operating conditions.
Stainless steel
Recommended for applications that require greater corrosion resistance, durability or specific process requirements.
The system configuration also considers the proper selection of the filter media and the hydraulic components needed to provide performance, operational safety and easy maintenance.
System components and configurations:
Pressure vessel
Structure that houses the filter media and withstands the pressure conditions required by the filtration process.
Filter bed
Set of materials selected according to the characteristics of the water and the treatment goal. The system can work with different filter media or combinations of them.
Distribution and collection system
Responsible for properly distributing the water flow across the filter bed and collecting the water after it passes through the filter media.

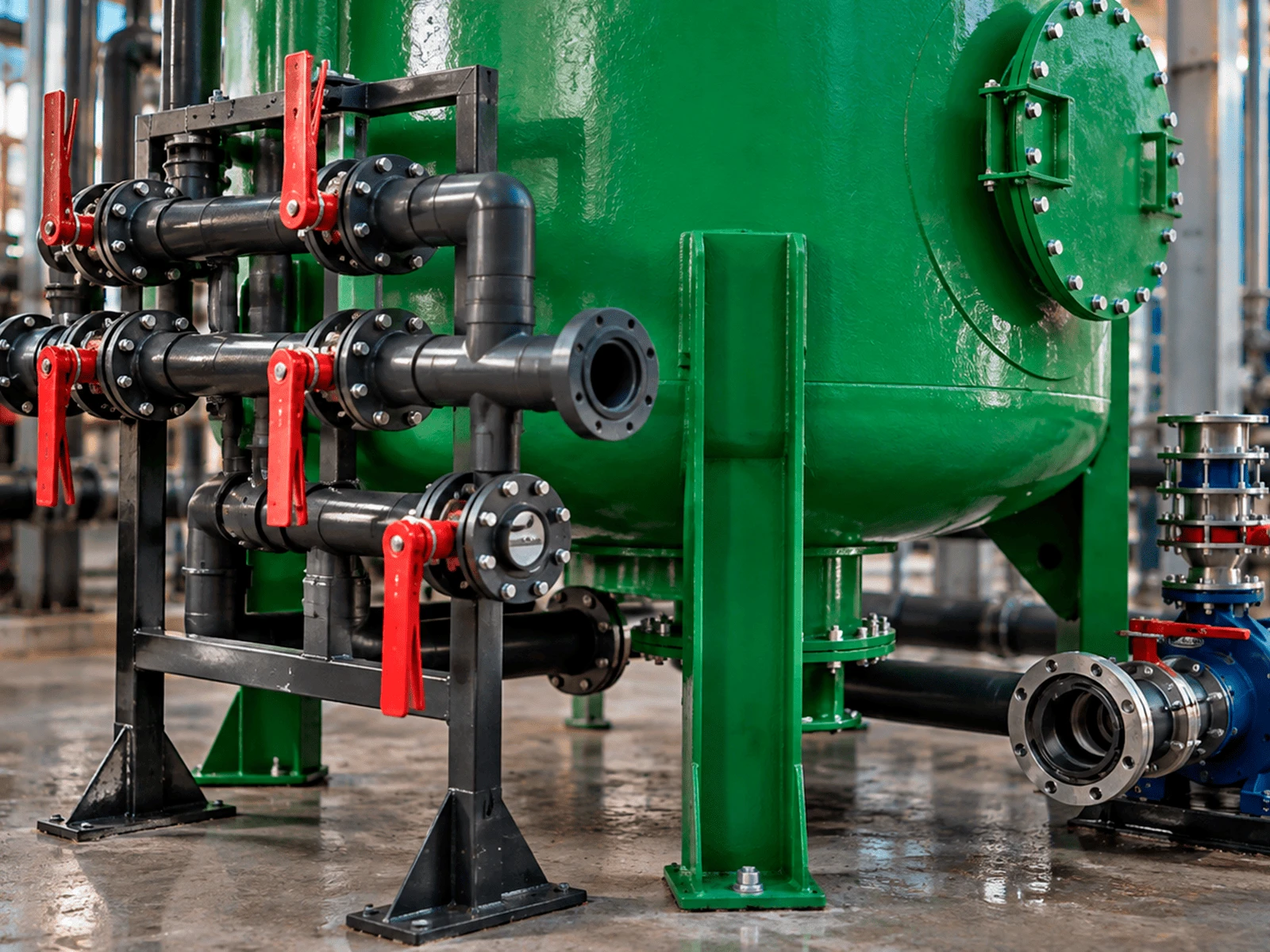

Valves and piping
Allow the water flow to be directed and controlled under the different operating conditions of the equipment.
Instrumentation
Can be defined according to the level of control and monitoring required for each application.
Pumping system
When required by the process, the system can be integrated with pumping sized for the flow rate and hydraulic conditions of the installation.
Each system is designed according to the application, flow rate, solids load and quality standard required by the industrial process.
Discover the advantages of the Pressure Filter.
We offer complete solutions for every stage of water treatment, developed to provide reliability, high performance and technical excellence in different applications.
Applications
- Industrial water treatment;
- Water reuse;
- Reduction of suspended solids;
- Turbidity reduction;
- Color removal or reduction;
- Removal of particles and impurities;
- Reduction of organic matter, depending on the filter bed;
- Chlorine removal, depending on the filter media used;
- Final polishing of treatment systems;
- Pretreatment for subsequent stages;
- Industrial processes that require more stable water quality.
Request a Technical analysis.
Request a technical analysis for
your operation today!
Pressure Filter
Why choose Linsul?
Here are some reasons:
Environmental Compliance and Legal Certainty
Our wastewater treatment systems give clients greater peace of mind, as their industries comply with strict environmental standards, avoiding fines and penalties.
Energy Efficiency and Cost Reduction
Our equipment is designed to minimize energy consumption, providing significant operational savings combined with effective, long-lasting results.
Let's talk about your project.
Count on a trained, specialized team to understand the characteristics of your operation and recommend the most suitable solution for your wastewater treatment, ensuring efficiency, safety and the best results for your process.
Talk to a specialist
