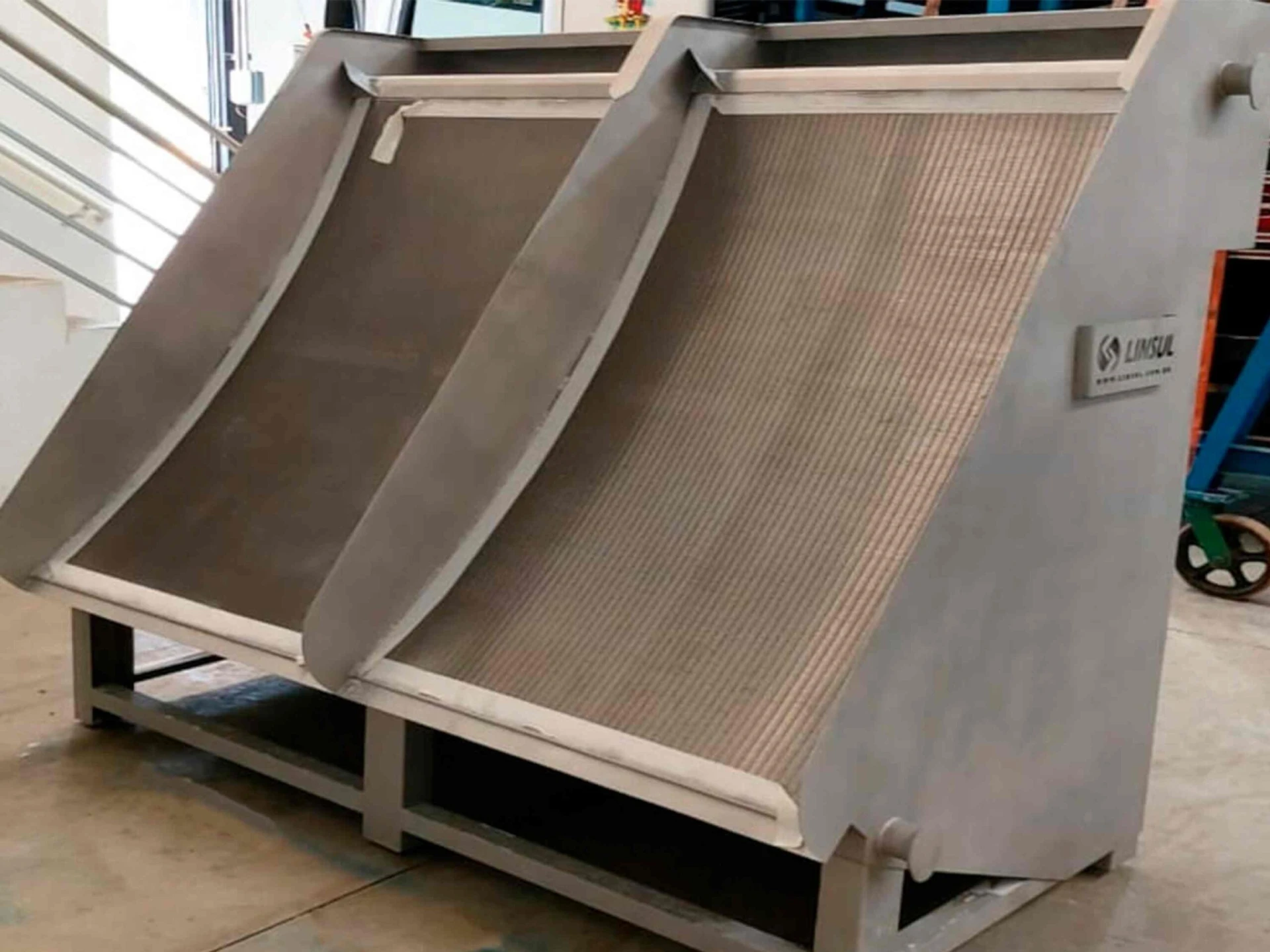

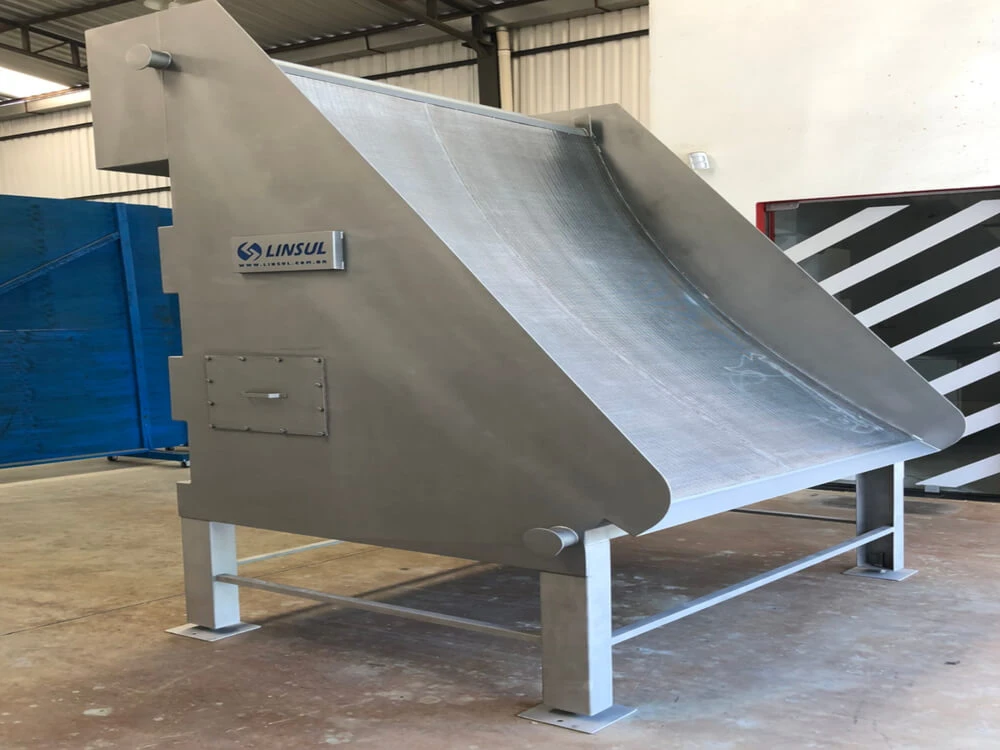

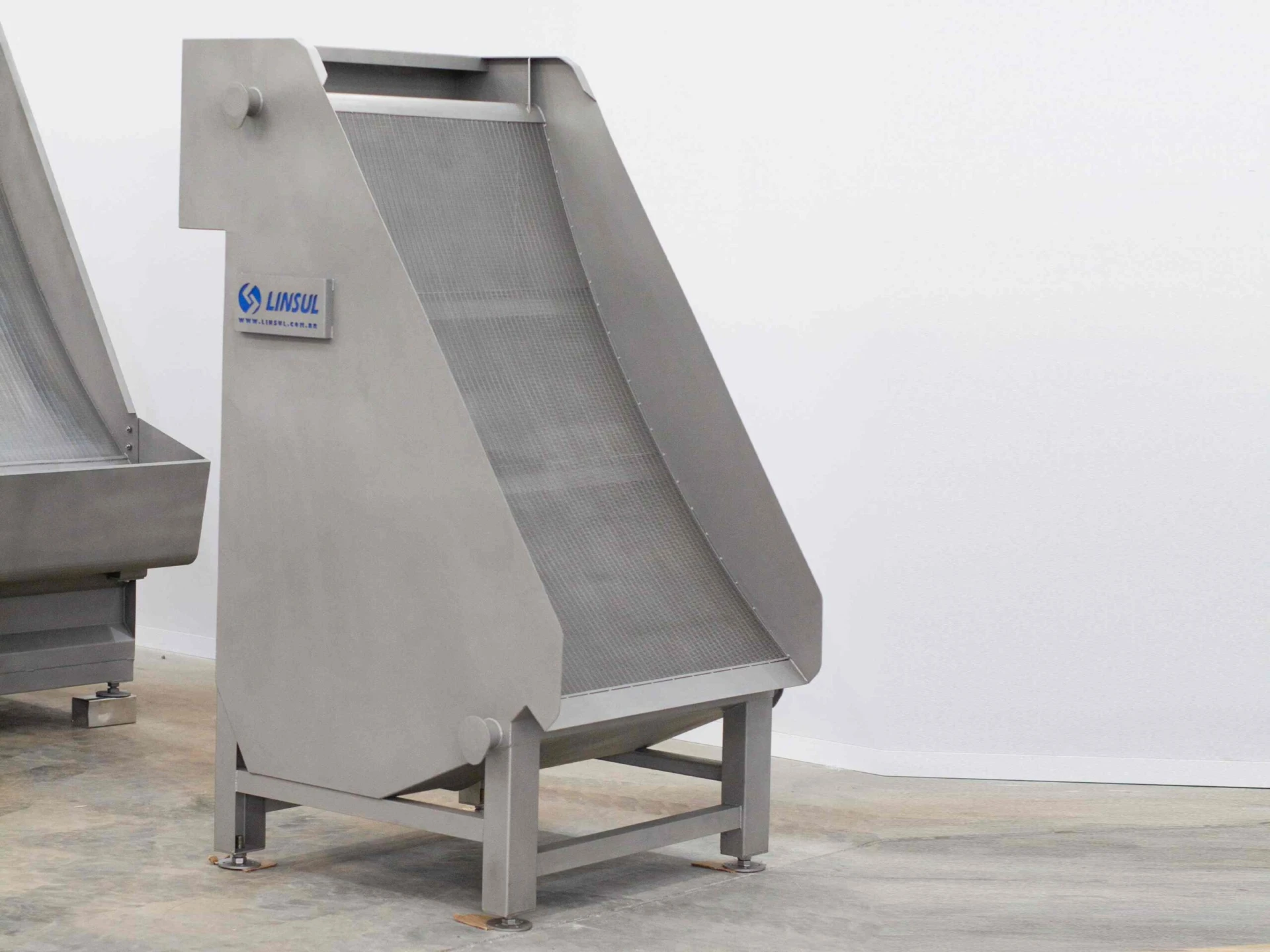

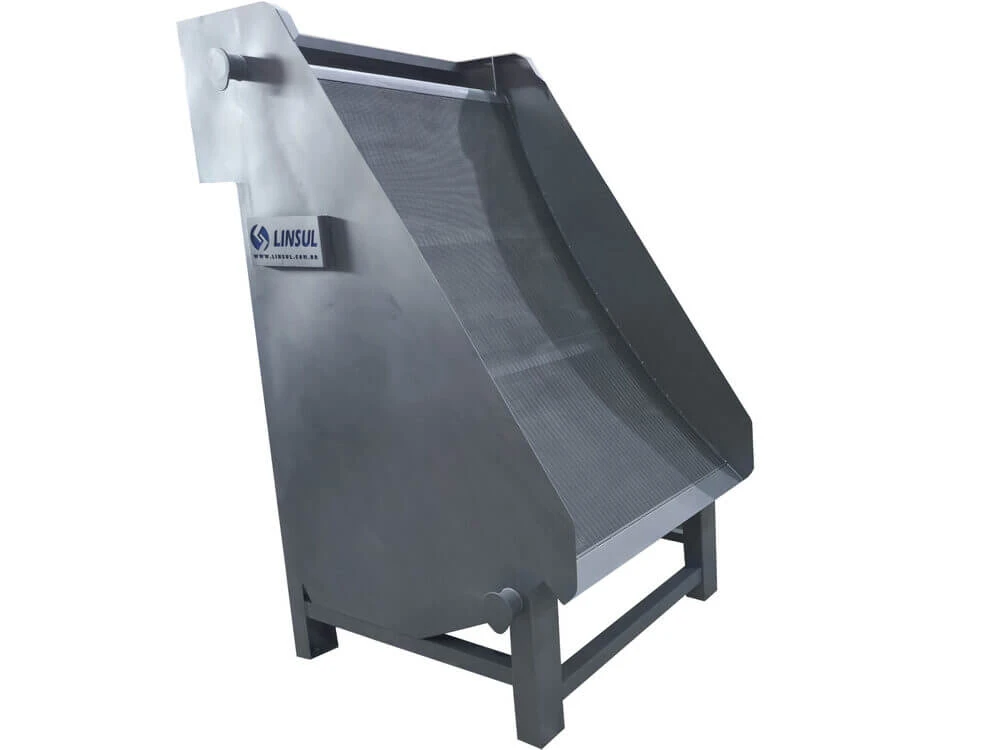

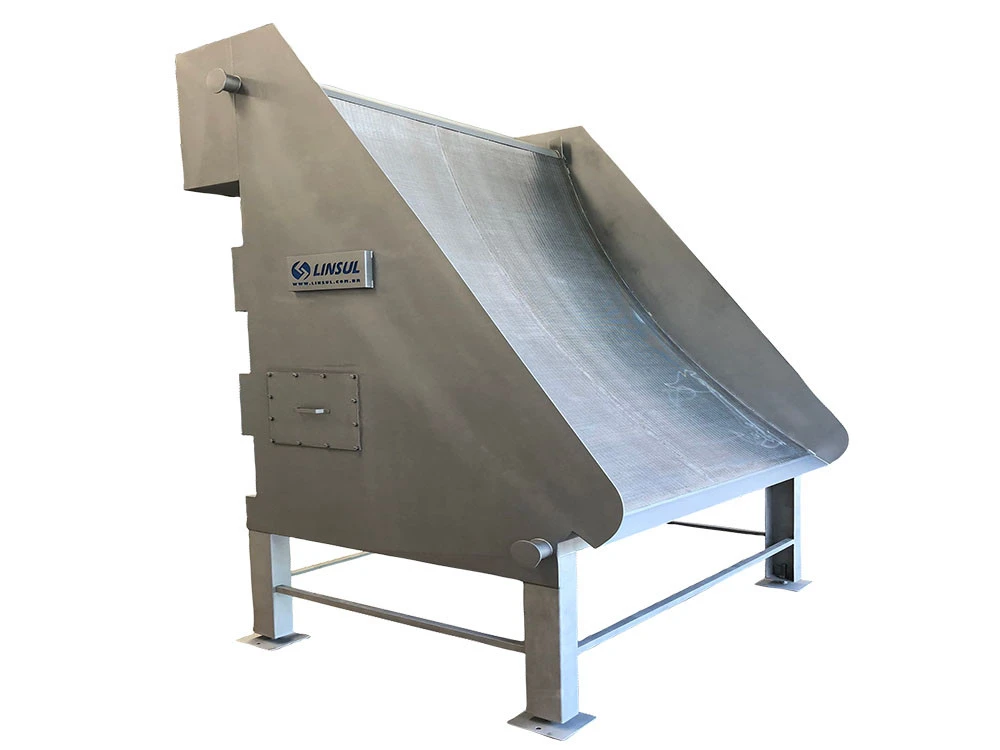

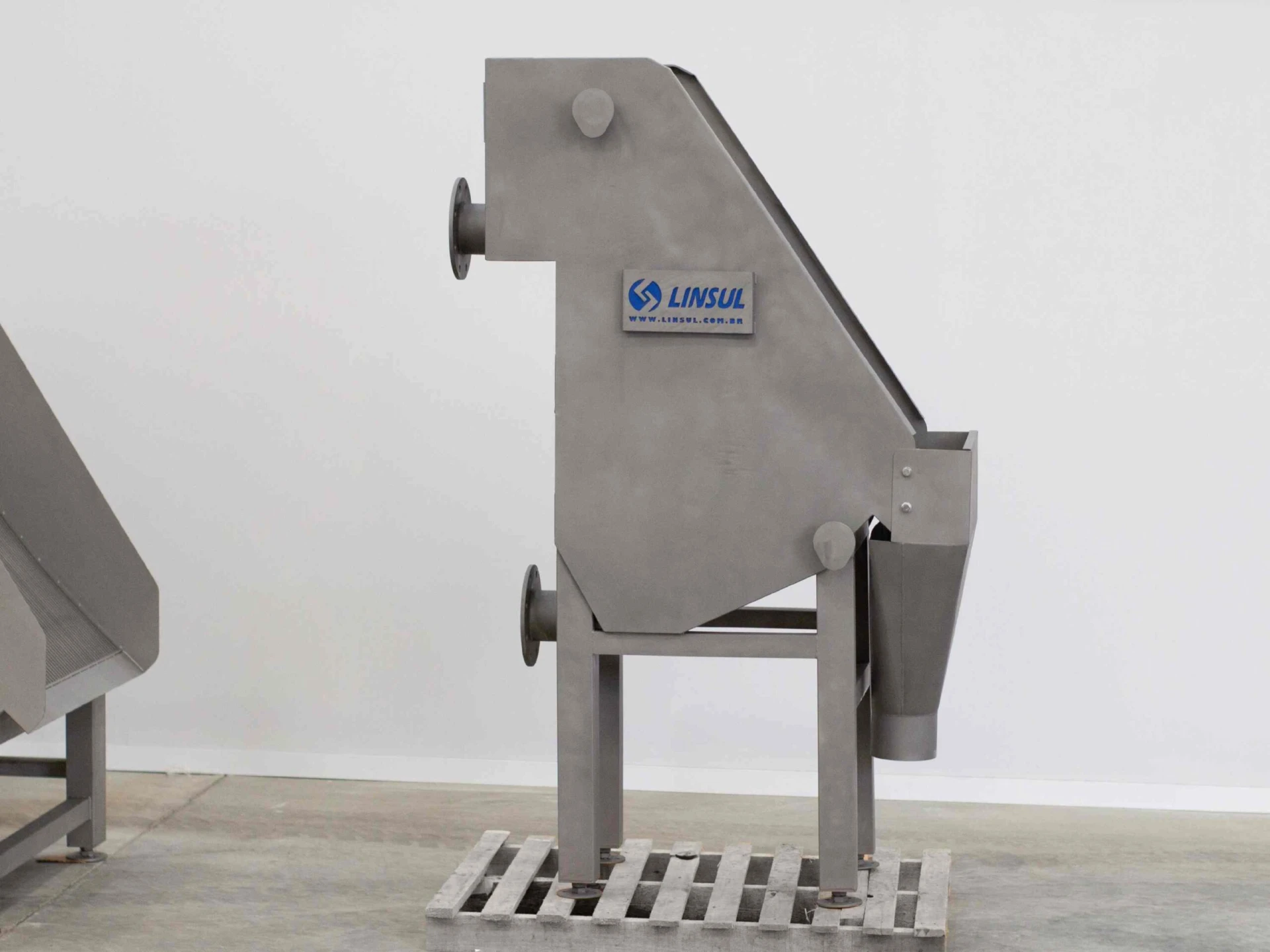

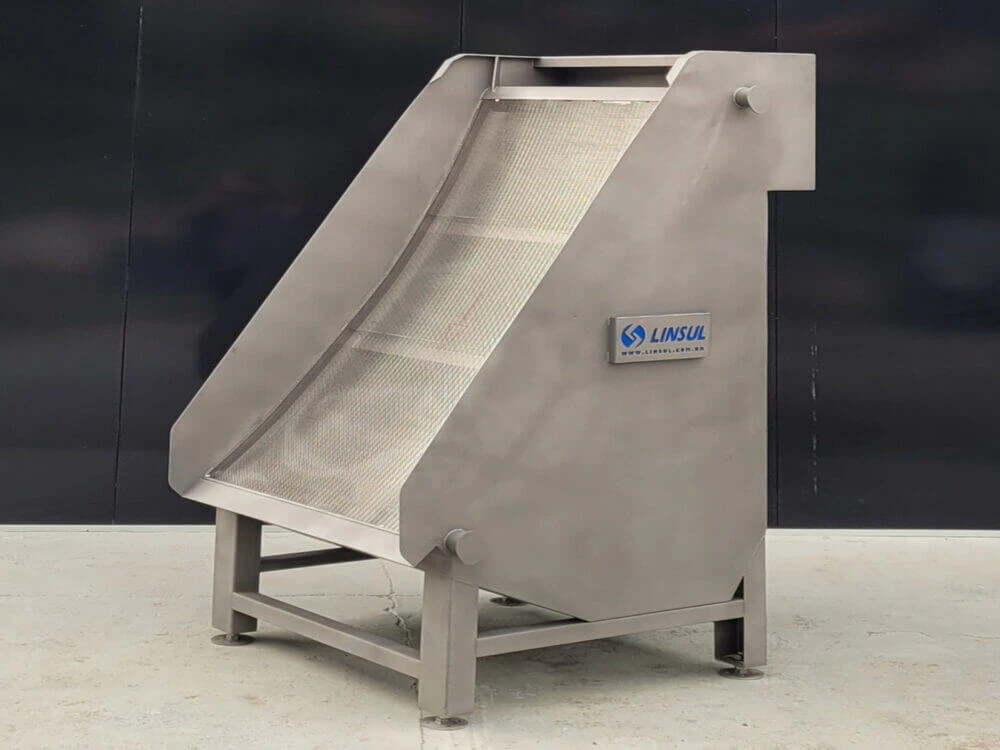

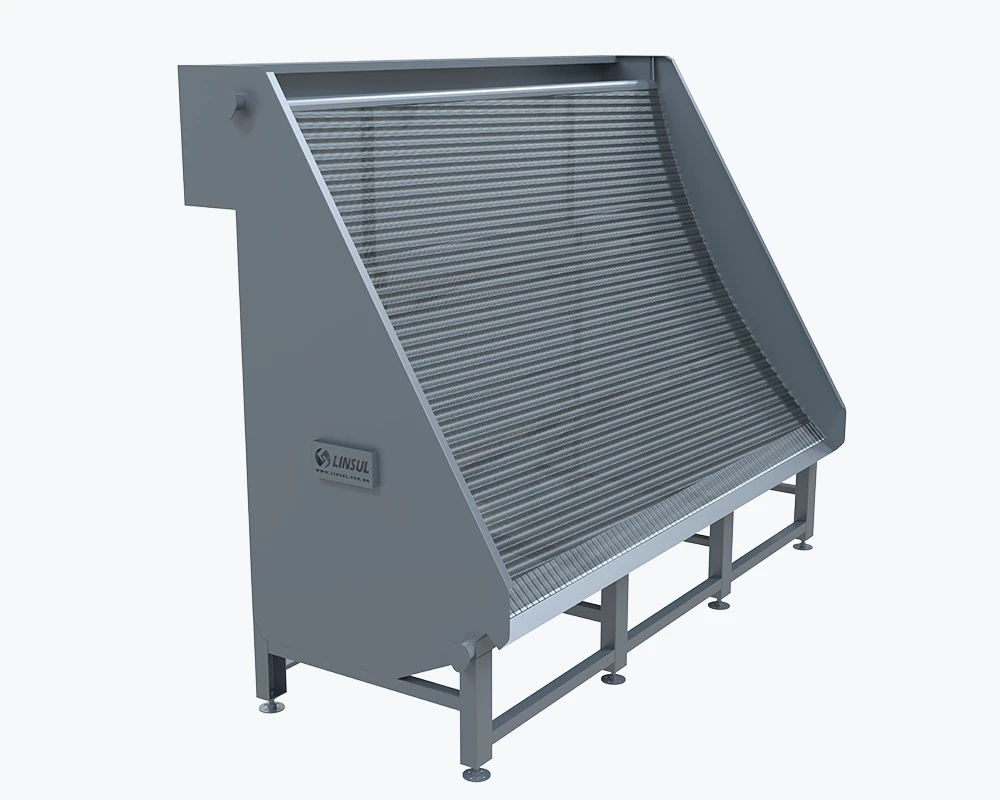

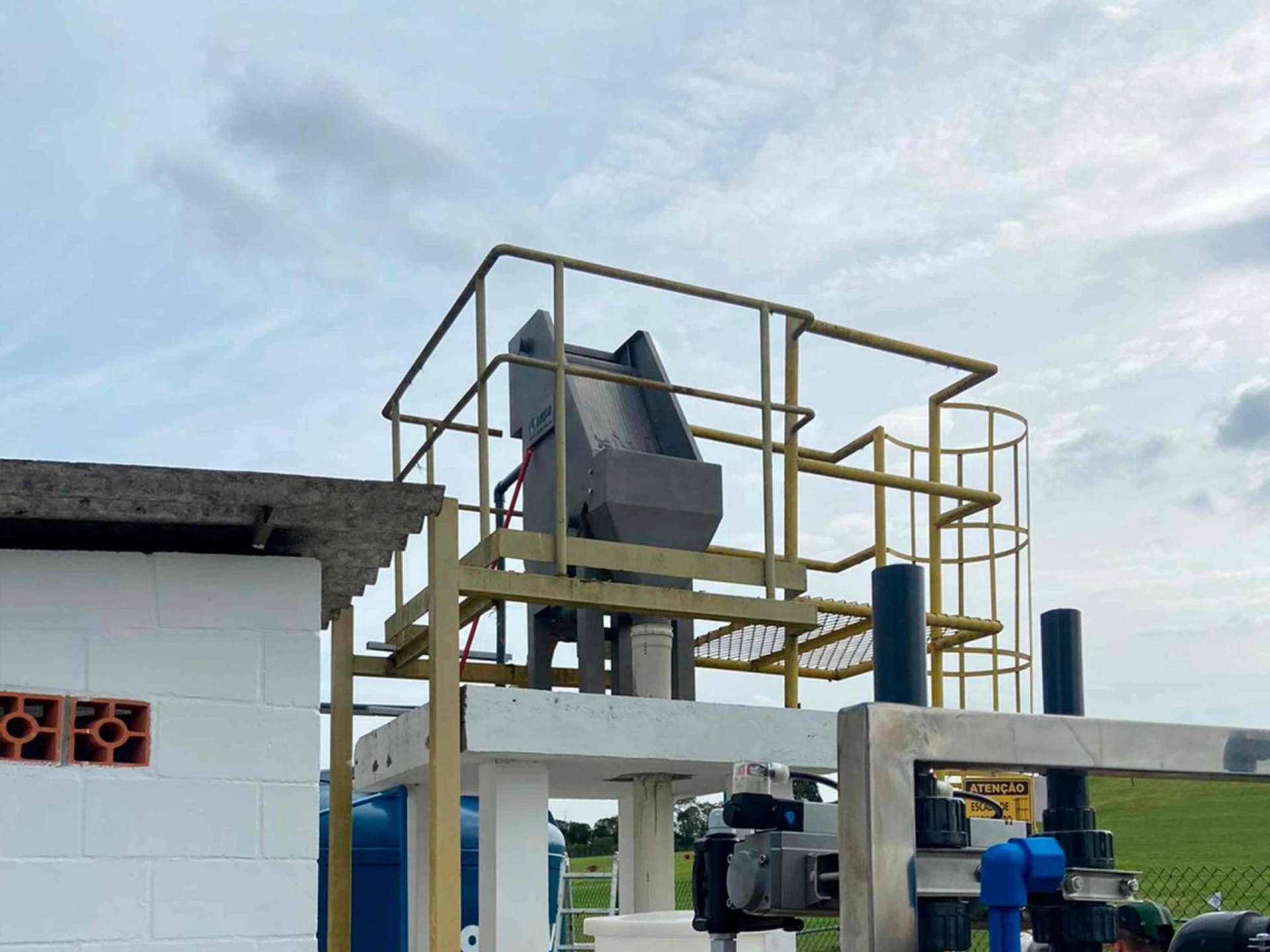

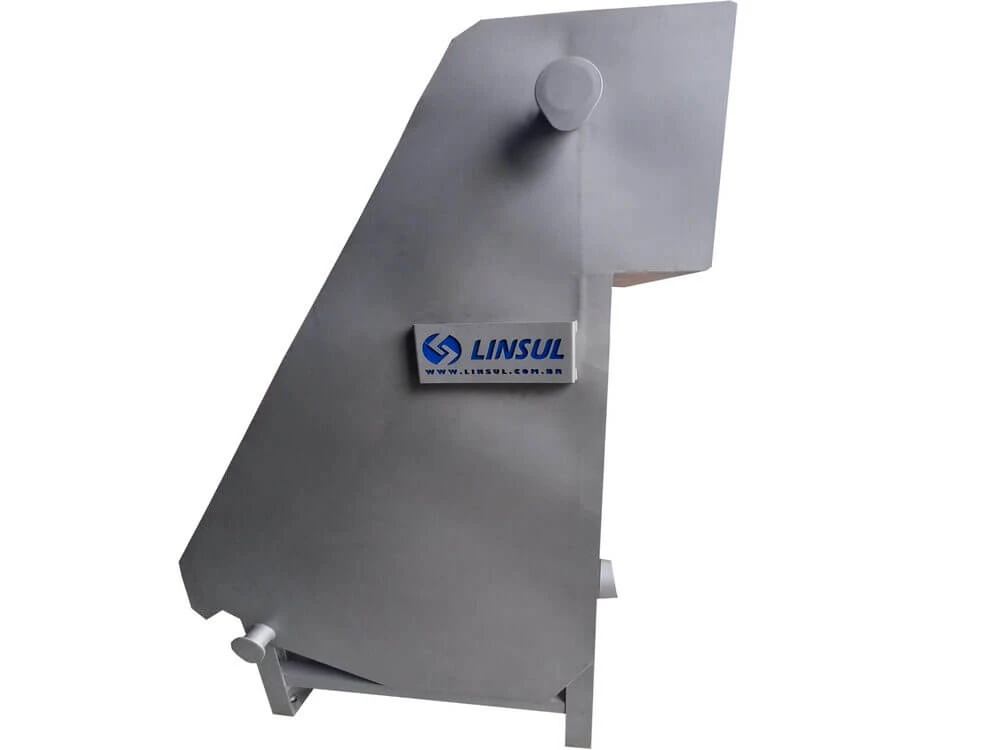

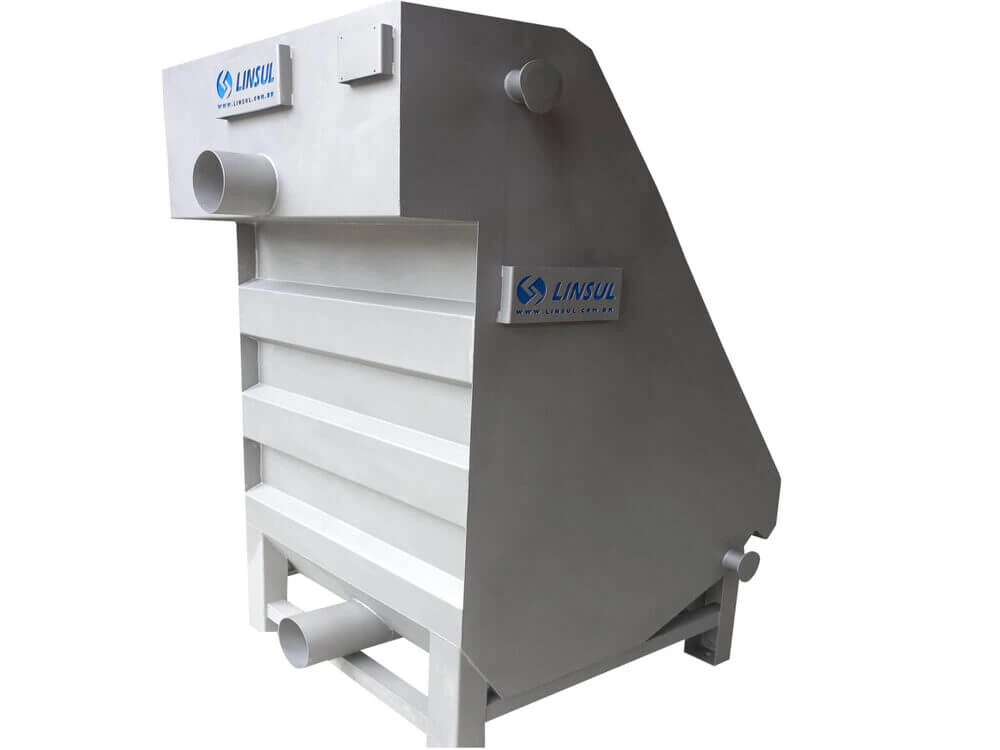

Static Screen
The Linsul Static Screen is equipment used in wastewater treatment to remove suspended solids, acting as an efficient solution in the pretreatment of industrial and sanitary systems.
Its operation is simple and continuous, separating solid particles through a filter screen, with no moving parts or high energy consumption.
As a result, it reduces the solids load in the subsequent treatment stages, increasing the efficiency of the entire system.
Efficient solids separation
The static screen operates by gravity, directing the wastewater over an inclined screen, where the solids are retained and the filtered liquid passes through.
This process allows particles of different sizes to be removed, depending on the screen opening, which can vary according to the project's needs.
In addition to reducing suspended solids, the equipment helps protect pumps, piping and downstream systems, preventing clogging and premature wear.
Custom design and high durability
Each static screen is sized according to the characteristics of the wastewater and the customer's operating conditions, such as flow rate, type of solids and operating regime.
Manufactured with resistant, high-quality materials, the screen offers a long service life, low maintenance needs and excellent performance over time.
Linsul also offers full technical support, ensuring safety and efficiency from equipment selection to operation.
Operating capacity
Available capacity: 5 to 500 m³/h.
Discover the advantages of the Static Screen.
We offer complete solutions for every stage of water treatment, developed to provide reliability, high performance and technical excellence in different applications.
Advantages
- High efficiency in removing suspended solids;
- Continuous operation with no need for electricity;
- Simple, robust, easy-to-install equipment;
- Low operating and maintenance costs;
- Protection of pumps and downstream systems;
- Custom design according to the type of wastewater;
- Screen opening options from 0.25 to 5.0 mm;
- Option of perforated or wedge wire screen;
- Easy screen cleaning and replacement;
- Long equipment service life.
Applications
- Wastewater treatment plants (WWTP);
- Industrial pretreatment systems;
- Food industries and meatpacking plants;
- Treatment of wastewater with a high solids load;
- Separation of solid waste in industrial processes;
- Protection of pumps and lift systems;
- Water treatment plants (WTP);
- Water reuse systems;
- Various industrial segments.
How It Works
The wastewater is fed to the top of the screen and distributed over the inclined filter screen.
As it passes over the screen surface, the liquid flows through the openings, while the solids are retained and slide down the slope to the discharge area.
This process takes place continuously and by gravity, with no need for mechanical drives, which reduces operating costs and simplifies operation.
The efficiency of the system is directly related to choosing the right screen opening, ensuring the best performance for each type of application.
Request a Technical analysis.
Request a technical analysis for
your operation today!
Static Screen
Why choose Linsul?
Here are some reasons:
Environmental Compliance and Legal Certainty
Our wastewater treatment systems give clients greater peace of mind, as their industries comply with strict environmental standards, avoiding fines and penalties.
Energy Efficiency and Cost Reduction
Our equipment is designed to minimize energy consumption, providing significant operational savings combined with effective, long-lasting results.
Let's talk about your project.
Count on a trained, specialized team to understand the characteristics of your operation and recommend the most suitable solution for your wastewater treatment, ensuring efficiency, safety and the best results for your process.
Talk to a specialist
