Envases

WWTP and water treatment for Envases' new plant

Integrated solution for a continuously running plastics recycling operation.

Home Cases WWTP and water treatment for Envases' new plant
getting to know the solution

More efficiency,
less waste.

Linsul developed a wastewater treatment plant for Envases' new facility in Ponta Grossa, Paraná. The project combined wastewater treatment stages and water treatment solutions to meet the needs of the industrial process.

Challenge

The new facility needed a structure compatible with operation 24 hours a day, seven days a week. The sizing considered effluent flows of up to 25 m³/h, peaks of up to 60 m³/h and a daily volume of up to 600 m³.

Linsul solution

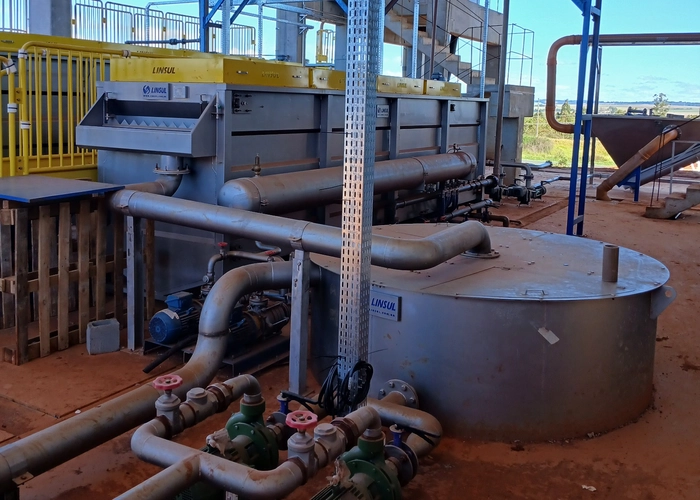

The main scope included a rotary drum screen, a grit chamber, a diffused air aeration system and a flotodecantador. The solution also included a sludge scraper bridge in the secondary clarifier, a tertiary DAF unit and a sand filter. For water treatment, a 40 m³/h WTP and a 10 m³/h reverse osmosis system were delivered.
  • Integrated wastewater and water treatment within the new plant's scope.
  • Additional stages for effluent treatment and polishing.
  • Sizing focused on continuous operation and process flow variations.
WWTP and water treatment for Envases' new plant
project data

Technical specifications.

Effluent flow
Up to 25 m³/h
Peak flow
Up to 60 m³/h
Daily effluent volume
Up to 600 m³/day
Operating schedule
24 h/day, 7 days/week
WTP capacity
40 m³/h
Reverse osmosis capacity
10 m³/h
